 PRODUCTS \ LAN Products \ Switches Gigabit \ SWG240020-R |
|
|
|
 |
|
|

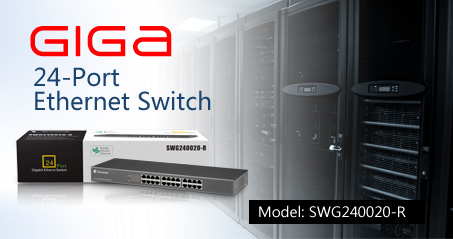

Item: 24 Port 10/100/1000Mbps Gigabit Switch
Item code: SWG240020-R
 Download PDF file Download Packaging file
FEATURES
High-capacity 24-Port 10/100Mbps Gigabit Switch
Supports 10/100Mbps Half/Full duplex and 1000Mbps Full duplex flow control and auto-negotiation
Supports IEEE 802.3x flow control for Full duplex and back pressure for Half duplex mode
Supports Store-and-forward architecture
Supports Auto MDI/MDI-X function
Supports up to 9KB Jumbo Frames
Supports up to 8K MAC Address Table
Provides 480KB Buffer Memory
19-inch, 1U high with Internal Power Supply.Brackets included
SPECIFICATIONS
| Standard |
IEEE802.3u Fast Ethernet 100Base-TX and 100Base-FX standards |
| Connector |
Twenty-four port 10/100/1000Mbps RJ-45) |
| Cable Connections |
RJ-45 (10BASE-T) : UTP Category 3, 4, 5
RJ-45 (100BASE-TX) : UTP Category 5
RJ-45 (1000BASE-T) : UTP Category 5, 6 |
| Network |
Data Rate Auto-negotiation
(10Mbps, 100Mbps, 1000Mbps) |
| Transmission Mode |
Auto-negotiation(Full-duplex, Half-duplex) |
| Switch Fabric |
46Gbps Forwarding Capacity |
| LED indications |
PWR (Power)
10/100M (Speed),
Link/ACT (Link/Activity)
1000M (Speed),
Link/ACT (Link/Activity) |
Operating Temperature
|
0°C - 40°C (32°F ~ 104°F) Ambient |
| Operating Humidity |
10% ~ 90% (non-condensing) |
| Certifications |
FCC, CE |
|
| |
|
|
| |
|
|
|
|
|
